SS-48H Grinder (Pneumatic)

Product: Single-Sided

Description:

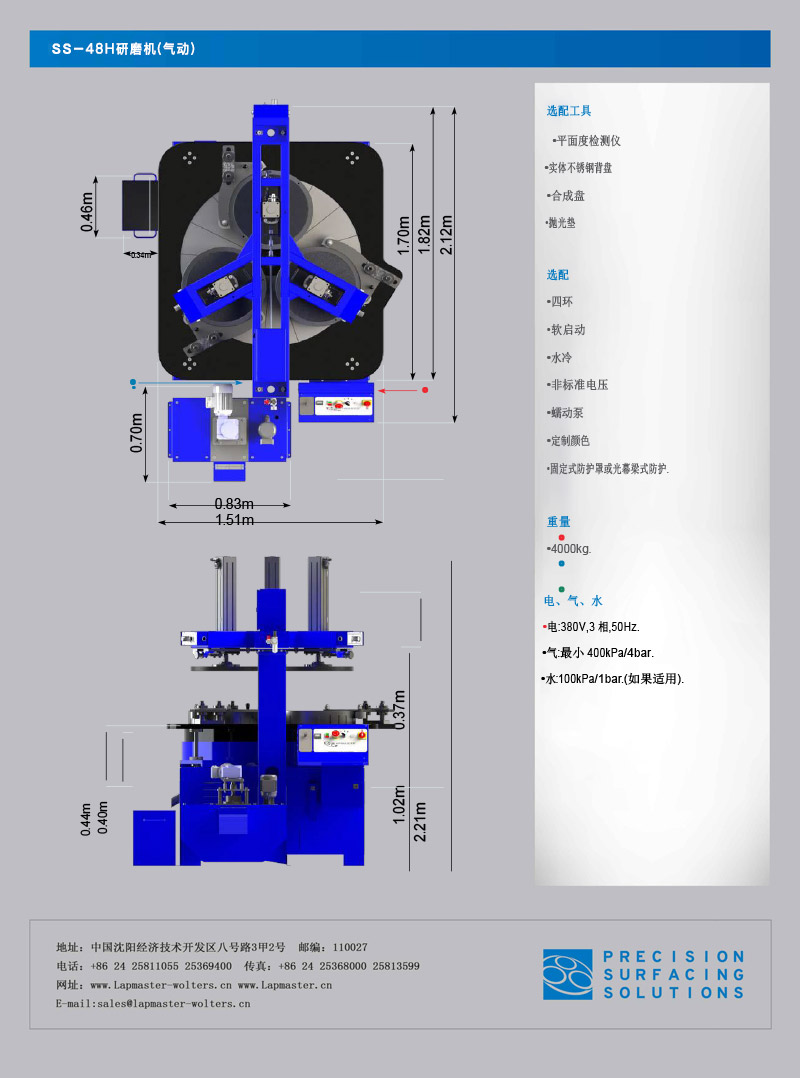

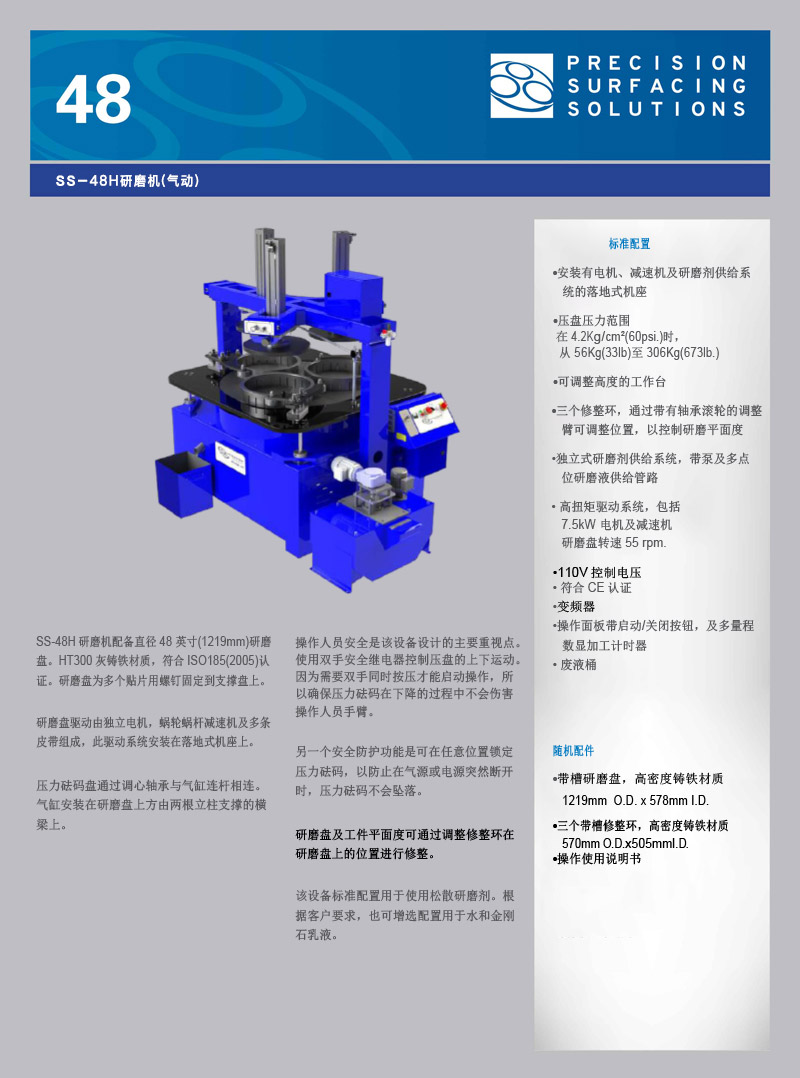

The S-48H grinding machine is equipped with a 48-inch (1219 mm) diameter grinding plate made of HT300 gray cast iron, compliant with the ISO 185 (2005) standard. The grinding plate consists of multiple segments secured to a support plate with screws.

The drive system—comprising an independent motor, a worm gear reducer, and multiple drive belts—is mounted on a floor-standing base.

The pressure weight plate is connected to the pneumatic cylinder's piston rod via a self-aligning bearing. The pneumatic cylinder is mounted on a crossbeam supported by two vertical columns positioned above the grinding plate.

Inquire for Details

The S-48H lapping machine is equipped with a 48-inch (1219 mm) diameter lapping plate made of HT300 gray cast iron, compliant with the ISO 185 (2005) standard. The lapping plate consists of multiple segments secured to a support plate with screws.
The drive system for the lapping plate comprises an independent motor, a worm gear reducer, and multiple drive belts; this assembly is mounted on a floor-standing base.
The pressure weight plate is connected to the pneumatic cylinder's piston rod via a self-aligning bearing. The pneumatic cylinder is mounted on a crossbeam supported by two vertical columns positioned above the lapping plate.

Operator safety is a primary focus of the equipment's design. A two-hand safety relay controls the vertical movement of the pressure plate; since simultaneous two-hand operation is required to initiate the process, this ensures the operator's arms are not injured while the pressure weight is descending.
Another safety feature allows the pressure weight to be locked in any position, preventing it from falling in the event of a sudden loss of air or power supply.
The flatness of the lapping plate and the workpiece can be adjusted by modifying the position of the conditioning ring on the lapping plate.
The equipment is configured as standard for use with loose abrasives; configurations for water and diamond slurry are also available as options upon customer request.

Floor-standing base unit equipped with motor, gear reducer, and abrasive supply system
• Pressure plate force range: 56 kg (123 lb) to 306 kg (673 lb) at 4.2 kg/cm² (60 psi)
• Height-adjustable work table
• Three conditioning rings with adjustable positions (via bearing-equipped arms) to control lapping flatness
• Independent abrasive supply system featuring a pump and multi-point delivery lines
• High-torque drive system including a 7.5 kW motor and gear reducer; lapping plate speed: 55 rpm
• 110V control voltage
• CE certified
• Variable Frequency Drive (VFD)
• Control panel with Start/Stop buttons and a multi-range digital process timer
• Waste fluid container

Included Accessories
• Grooved lapping plate, high-density cast iron (1219 mm O.D. x 578 mm I.D.)
• Three grooved conditioning rings, high-density cast iron (570 mm O.D. x 505 mm I.D.)
• Operation manual

Features

The S-48H lapping machine is equipped with a 48-inch (1219 mm) diameter lapping plate made of HT300 gray cast iron, compliant with the ISO 185 (2005) standard. The lapping plate consists of multiple segments secured to a support plate with screws.
The drive system for the lapping plate comprises an independent motor, a worm gear reducer, and multiple drive belts; this assembly is mounted on a floor-standing base.
The pressure weight plate is connected to the pneumatic cylinder's piston rod via a self-aligning bearing. The pneumatic cylinder is mounted on a crossbeam supported by two vertical columns positioned above the lapping plate.
Advantages

Operator safety is a primary focus of the equipment's design. A two-hand safety relay controls the vertical movement of the pressure plate; since simultaneous two-hand operation is required to initiate the process, this ensures the operator's arms are not injured while the pressure weight is descending.
Another safety feature allows the pressure weight to be locked in any position, preventing it from falling in the event of a sudden loss of air or power supply.
The flatness of the lapping plate and the workpiece can be adjusted by modifying the position of the conditioning ring on the lapping plate.
The equipment is configured as standard for use with loose abrasives; configurations for water and diamond slurry are also available as options upon customer request.
Standard Configuration

Floor-standing base unit equipped with motor, gear reducer, and abrasive supply system
• Pressure plate force range: 56 kg (123 lb) to 306 kg (673 lb) at 4.2 kg/cm² (60 psi)
• Height-adjustable work table
• Three conditioning rings with adjustable positions (via bearing-equipped arms) to control lapping flatness
• Independent abrasive supply system featuring a pump and multi-point delivery lines
• High-torque drive system including a 7.5 kW motor and gear reducer; lapping plate speed: 55 rpm
• 110V control voltage
• CE certified
• Variable Frequency Drive (VFD)
• Control panel with Start/Stop buttons and a multi-range digital process timer
• Waste fluid container

Included Accessories
• Grooved lapping plate, high-density cast iron (1219 mm O.D. x 578 mm I.D.)
• Three grooved conditioning rings, high-density cast iron (570 mm O.D. x 505 mm I.D.)
• Operation manual
